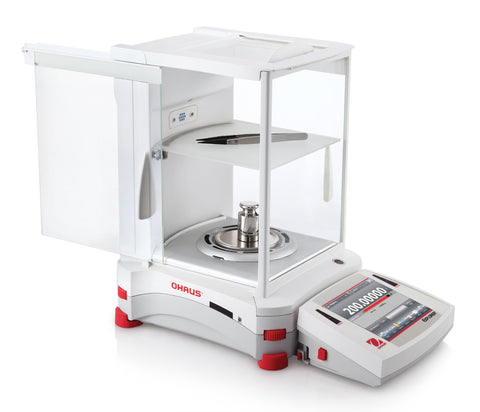

Ohaus EX225D Dual range Explorer Semi-micro Analytical Balance (120g/220g x 0.01mg/0.1mg) with internal calibration
Manufacturer: Ohaus
Model: Explorer EX225D Dual range
New Product from Manufacturer
Estimated lead time: 1 week (typically)
Warranty: 2 year Manufacturer's limited warranty
Applications
Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Pipette Adjustment, SQC
Display
Full-color VGA graphic display (5.7 in. diagonal), 4-wire resistive touch screen. QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data
Communication
Easy access communication ports including 2 units of USB port and RS232 and an optional fourth port of either RS232 or Ethernet. GLP/GMP Data Ouput with Real Time Clock. Data Transfer Function.
Construction
Metal base, ABS top housing, stainless steel pan,anti-static glass draftshield with flip-top door, replaceable in-use cover, automatic door as option models
Design Features
Maximum Capacity |
120 g / 220 g |
Readability |
0.01 mg / 0.1 mg |
Minimum weight |
20 mg |
Repeatability (typical) | 0.015 mg |
Stablilization time |
8 sec |
Internal Calibration |
InCal – Semi-automatic |
Draftshield |
Included |
Pan Size |
80 mm |
Pan construction |
Stainless steel |
Communications |
RS232, USB |
Dimensions (HxLxW) |
13.8” x 15.5”x 9.1” |
Display |
Full color 5.7 in. VGA, touch screen |
In-use cover |
Included |
Legal for Trade |
No |
Net Weight |
15 lb |
Power |
AC adapter included |
Tare range |
To capacity by subtraction |
Units of measure |
Carat; Custom; Grain; Gram; Kilogram; Mesghal; Milligram; Momme; Ounce; Ounce Troy; Pennyweight; Tical; Tola |
Working environment |
50 F – 86 F, 85%RH, non-condensing |
